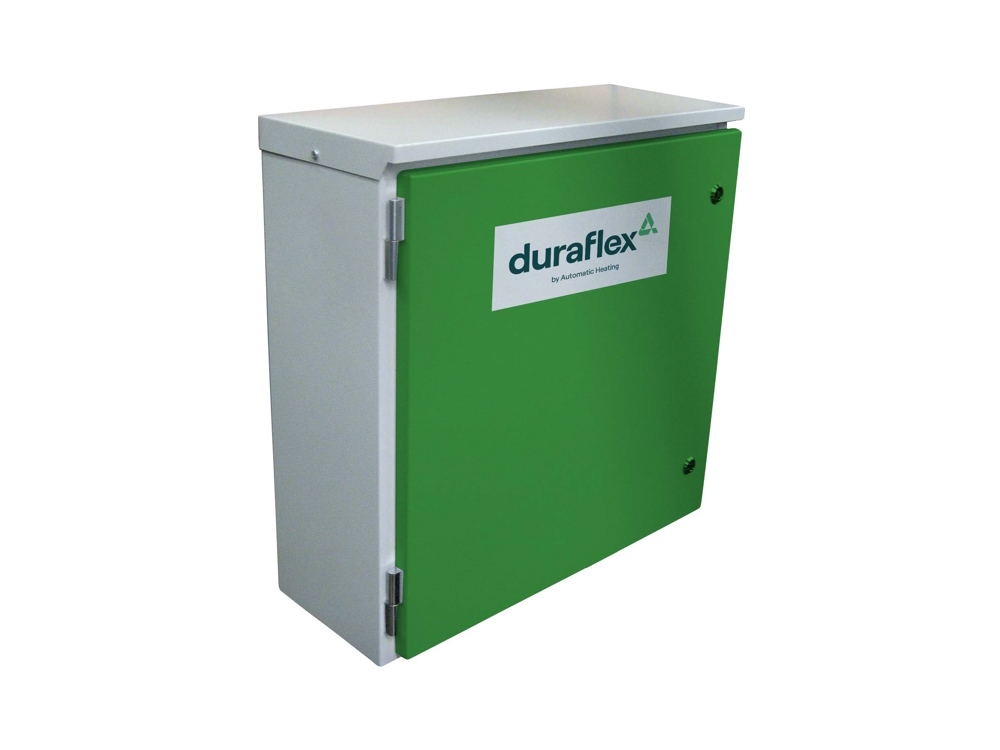

Duraflex Closed Loop Smart Refill Unit

Duraflex Smart Refill Unit, looks after topup of commercial heating and chilled water systems. monitor system water usage and pressure, warns and protects against detected system leaks, Integrated backflow protection and topup pressure control.

  • Refill Unit Type
Product Image

Duraflex Closed Loop Smart Refill Unit

$ 4,205.00 $ 4,205.00
Select Options
Product Features:
    • Smart Digital Programmable Controller
    • Smart controller with system calculator and adaption to system volume.
    • Water Meter for system water use.
    • Volt Free Alarm contacts for High pressure, Low pressure, and pump fault.
    • Volt Free contact for pump operation.
    • HLI Modbus connection for BMS Interface including system operating pressure.
    • Alarm output on Pump fault.
    • Automatic shutdown and alerts for major leak or high water use.
    • Wide range of adjustable system pressure set points.
    • User friendly digital control menu.
Click here for Rapid Info,
Leadtime & Pricing
Product Code:
N/A

Share :
Normally 1 week
Contact Us

System leakage detection

  • Continually monitors the system water usage.
  • Displays the average amount of water added per day on the LCD panel. Monitoring is compatible with BMS systems via Modbus.
  • Triggers warning alarm for excessive water leakage.
  • Triggers flood alarm for extensive loss, and the Refill is shut down.

System leakage is the silent destroyer and early detection of system water loss is vital to the prevention of damage.

Continually adding fresh water to a circulating system causes dilution of corrosion-inhibiting chemicals which are critical for system protection. Insufficient corrosion protection invariably shortens the working life of boilers, heat exchangers, valves, and pipework.

MODBUS BMS Remote monitoring:

The optional MODBUS High Level Interface allows connection to a remote Building Management System (BMS). Operators can view all system operating parameters remotely, including operating pressure, average daily water loss, total volume used, pump run hours and all system alarms.

The monitoring system can be tailored to suit client requirements.

Duraflex Smart Refill Options

  • RS 485 MODBUS BMS system set up. Operating fields can be customized.
  • Single pump or dual pump models for duty and standby operation.
  • Extra high pressure and flow rate pump.
  • Fill bypass kit for use during filling a large volume system.
  • Red flashing fault alert beacon mounted to top of housing.
