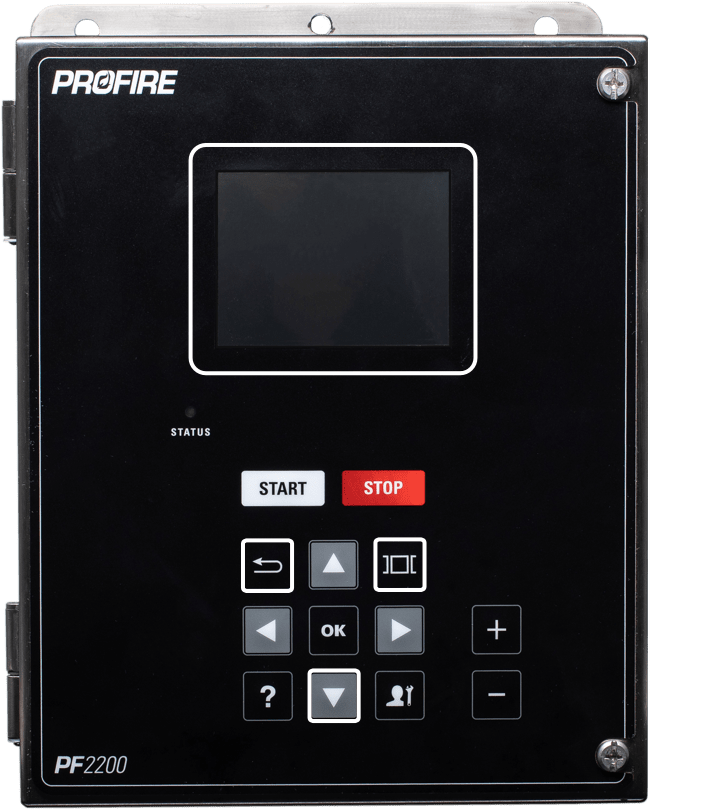

PF2200 SB Gas Burner controller - Natural Draught

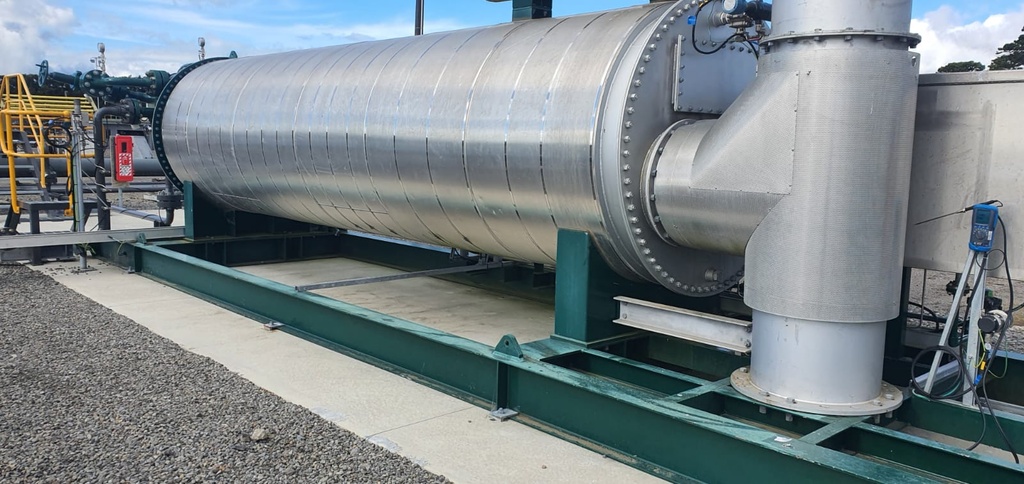

1The PROFIRE PF2200-SB controller has been specifically designed to enhance the performance and control of a wide array of natural draft fire tube applications. The PF2200-SB delivers the most powerful yet simple user experience possible. Perfect for most Atmospheric Water Bath heaters/burners. Suitable for verification to NZ gas standards. Looks after heater temp control, Interlocks, Fault output, Burner/pilot/Control valves and flame supervision functions.
Product Features:
WHY THE
PROFIRE PF2200-SB?
- Intuitive user interface & experience
- Comprehensive diagnostics & event logging
- Integrated Modbus & data logging
- Field upgradeable firmware
- Advanced PID & soft start: dedicated TCV output
- Settings back-up & restore for quick commissioning
- 4 configurable temperature inputs
- Thermocouple, RTC, 4-20mA supported
- Two configurable 4-20mA outputs
- Two configurable auxiliary 4-20mA inputs
- 4.4″ always on display
- Ultra-low power consumption
- Single and dual pilot ready
- UV and Ionisation dual flame supervision options.
